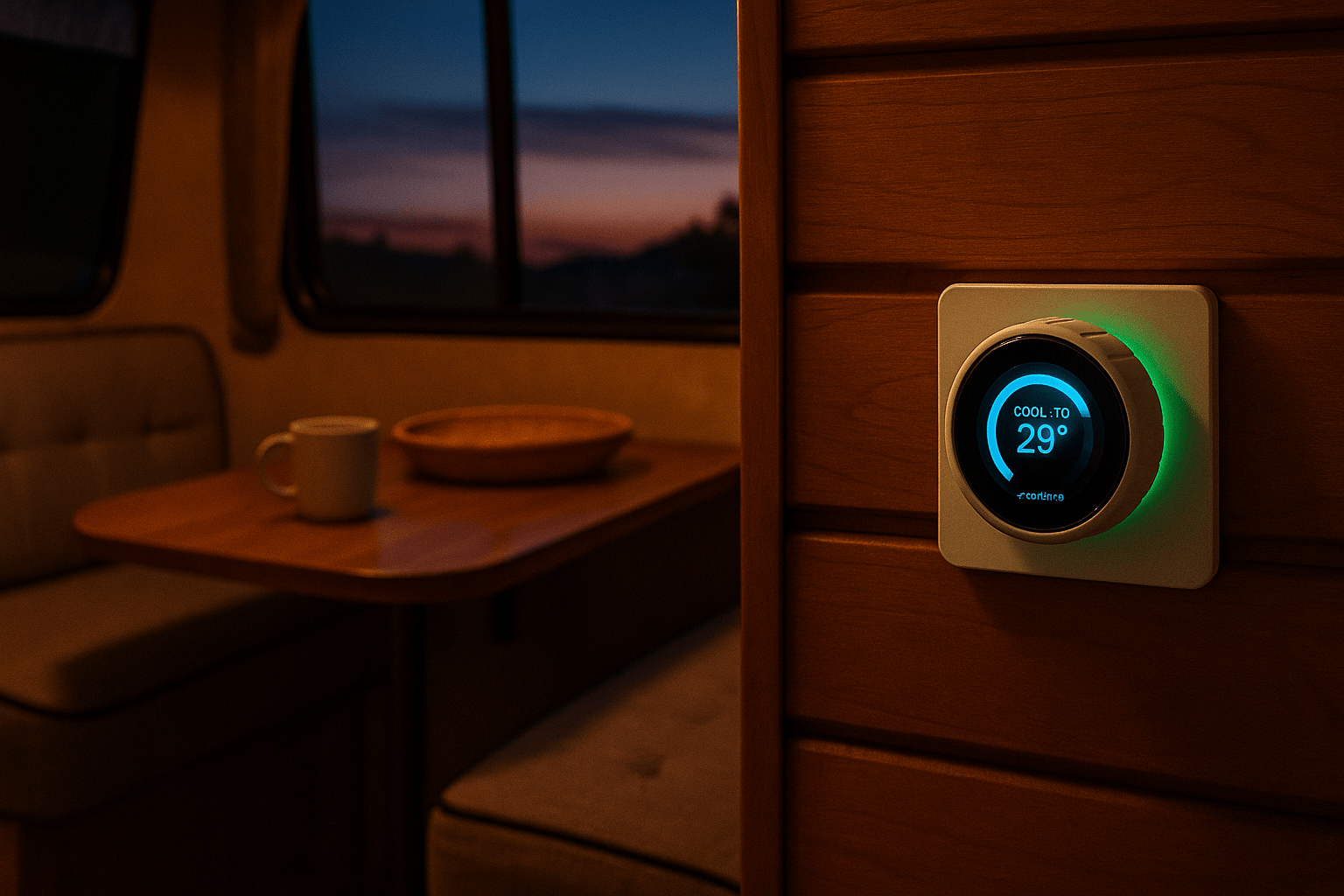

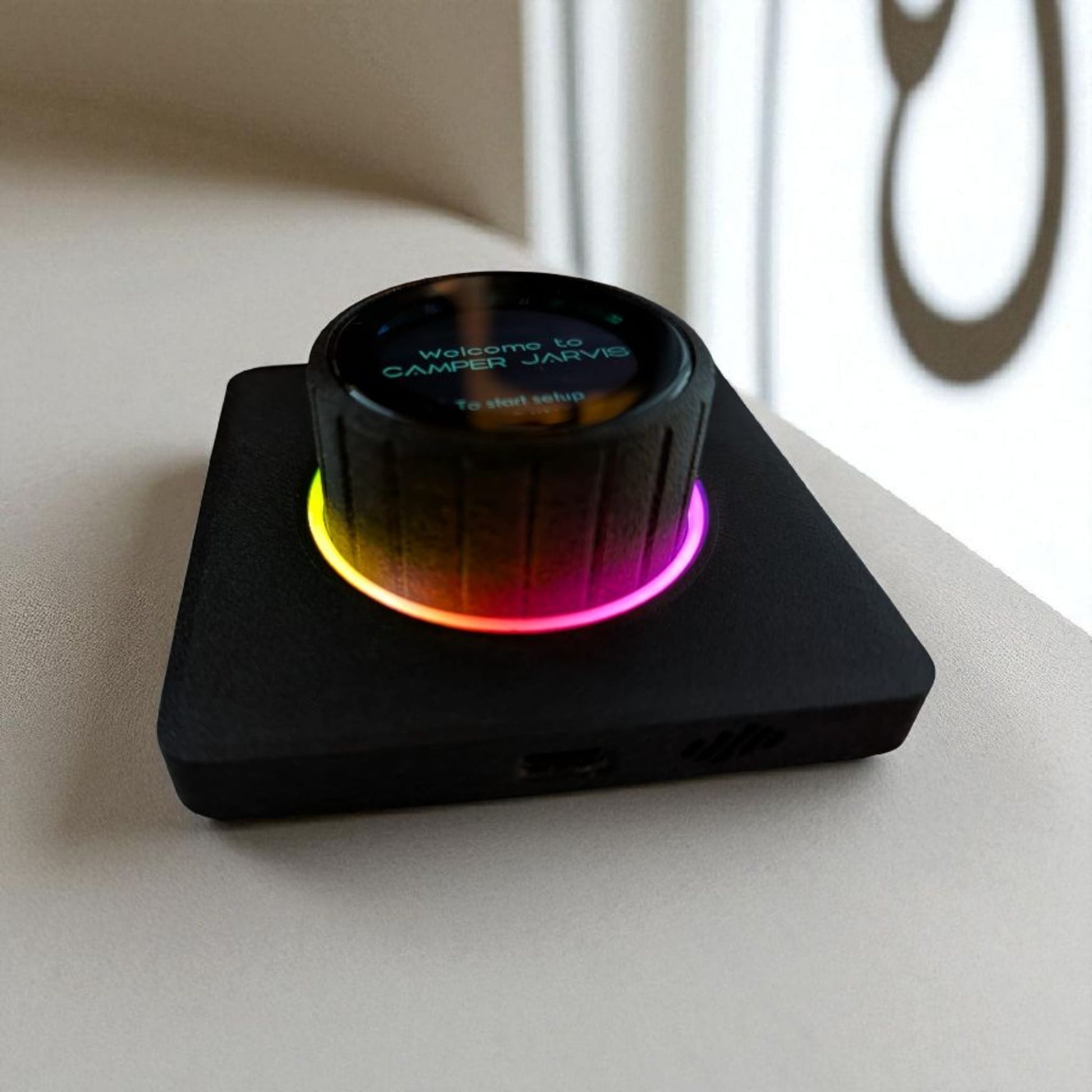

🌀Camper Jarvis SmartKnob

Central control and operating platform

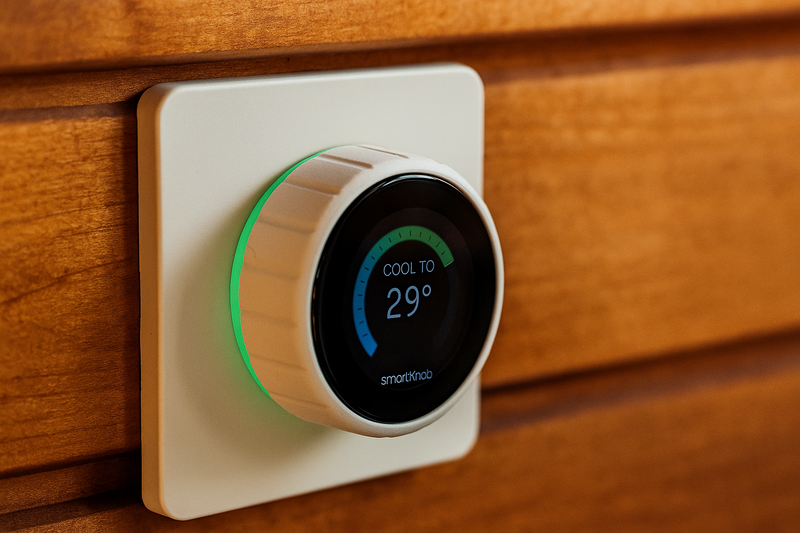

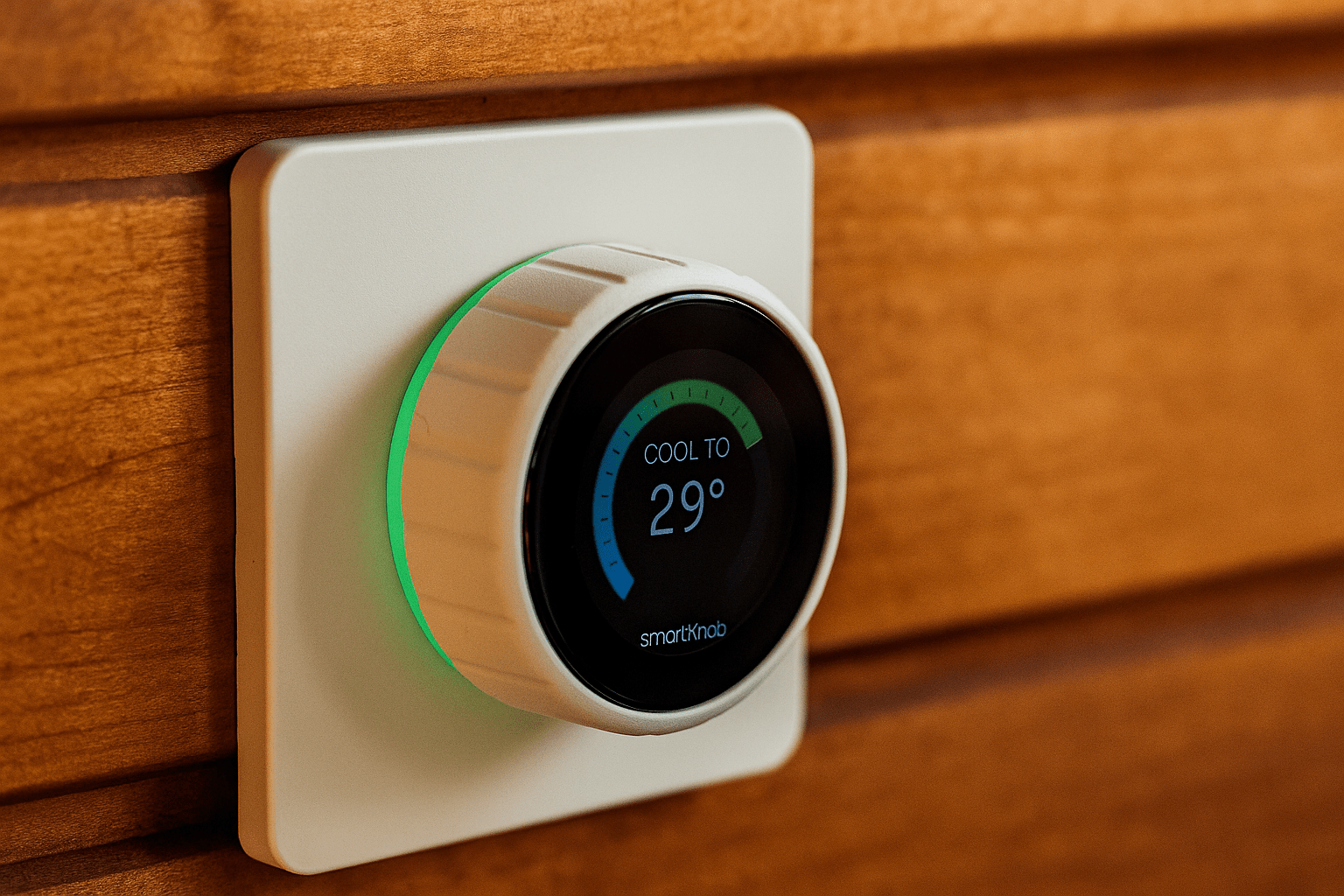

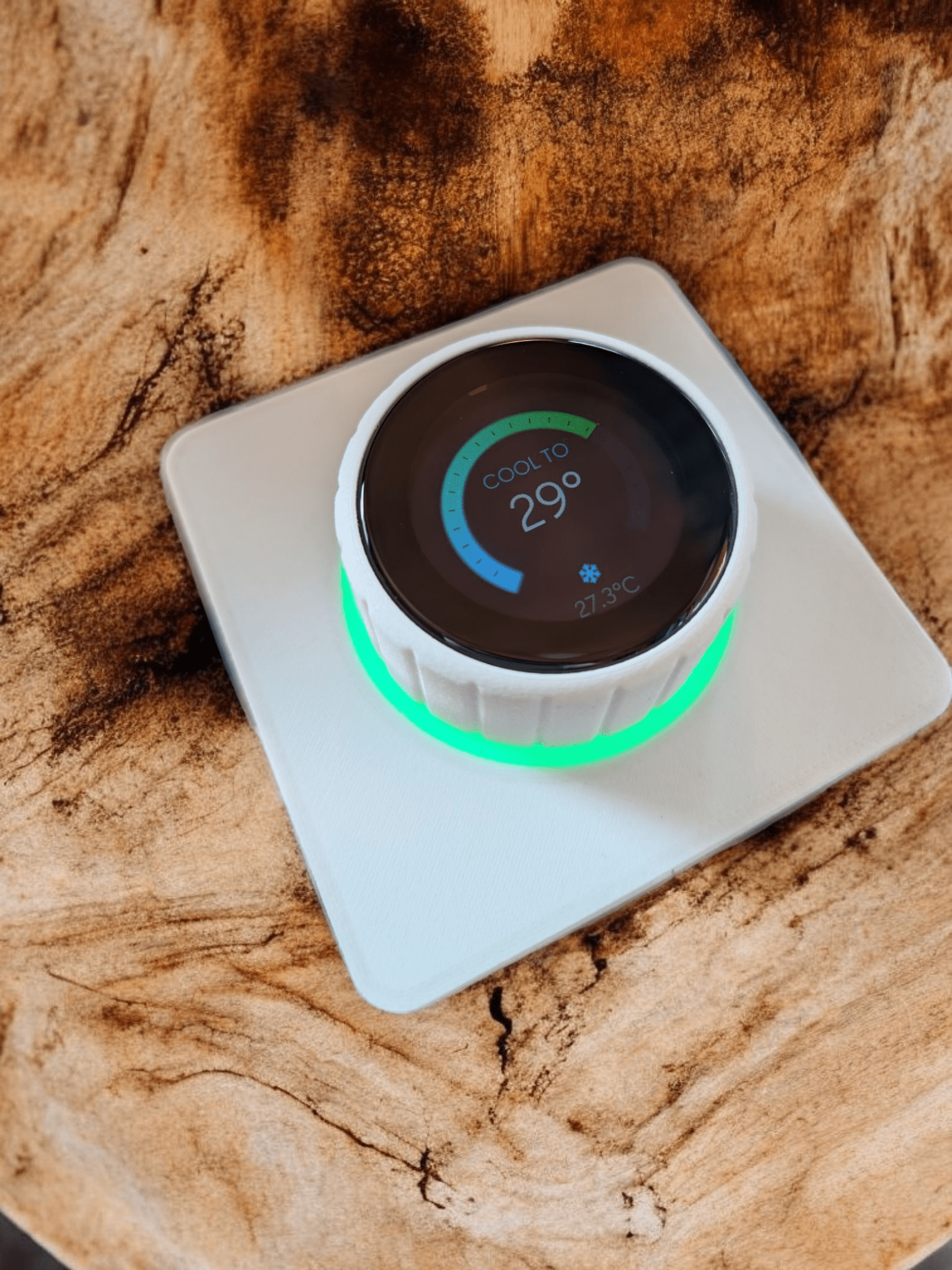

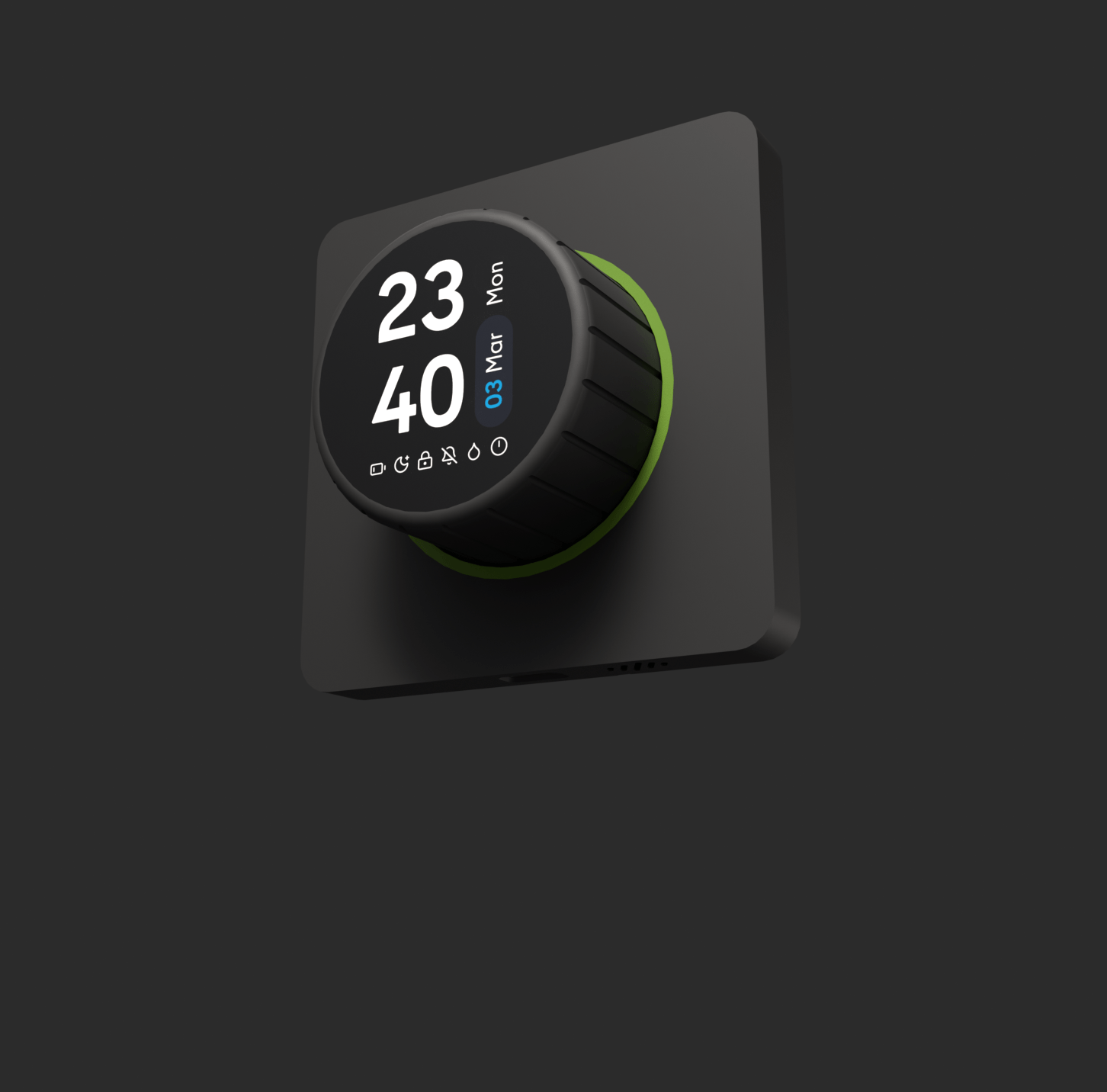

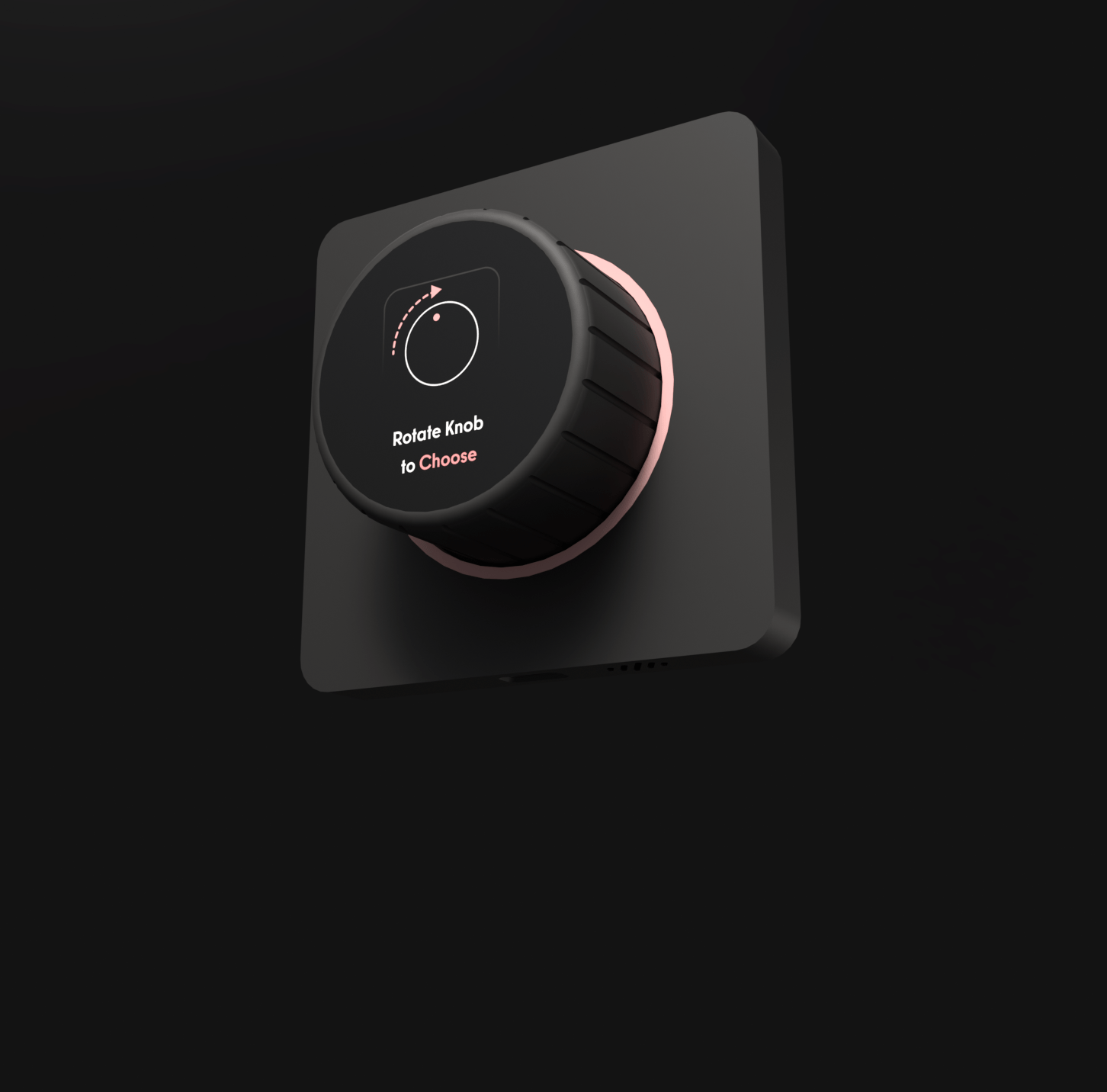

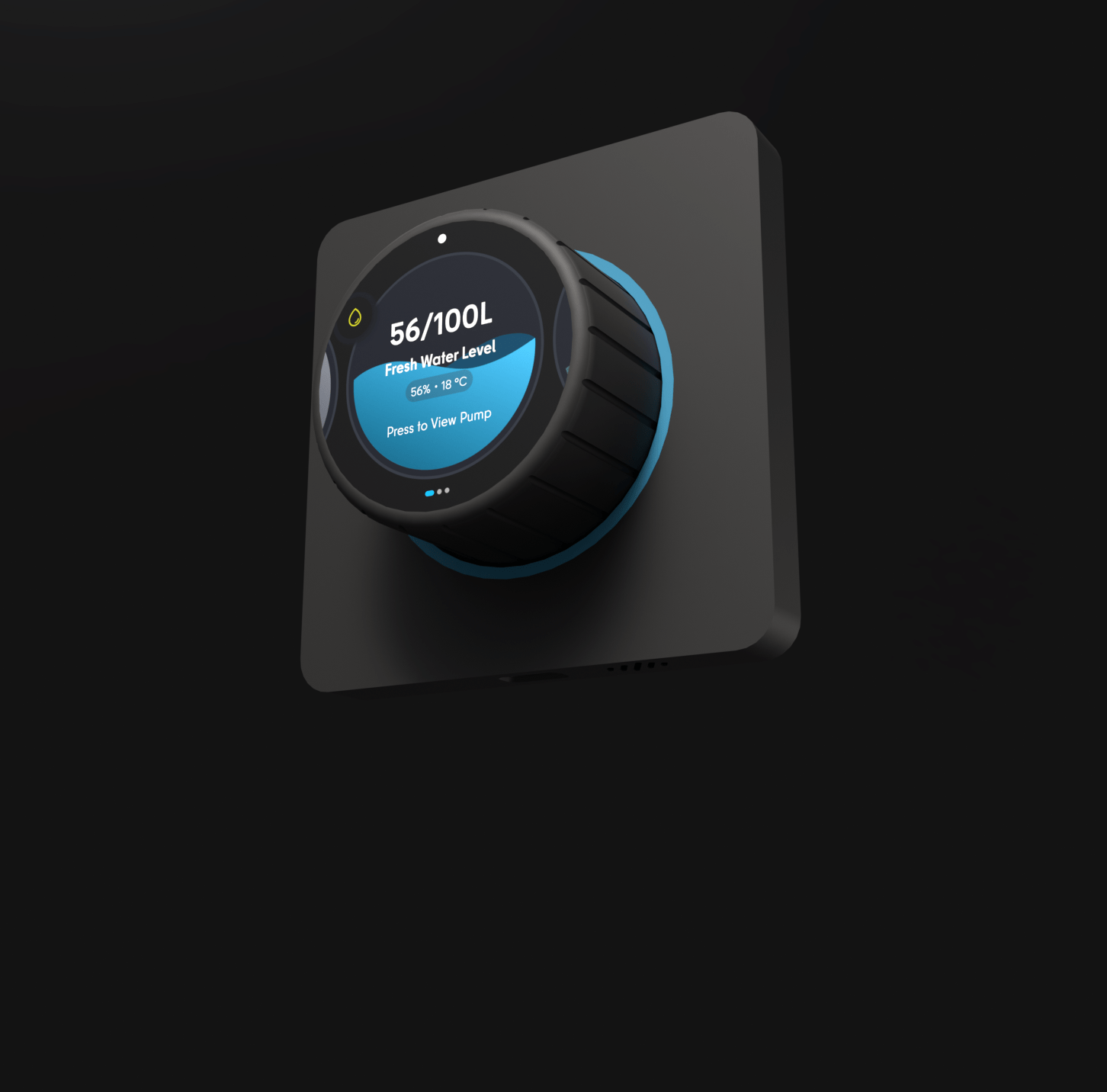

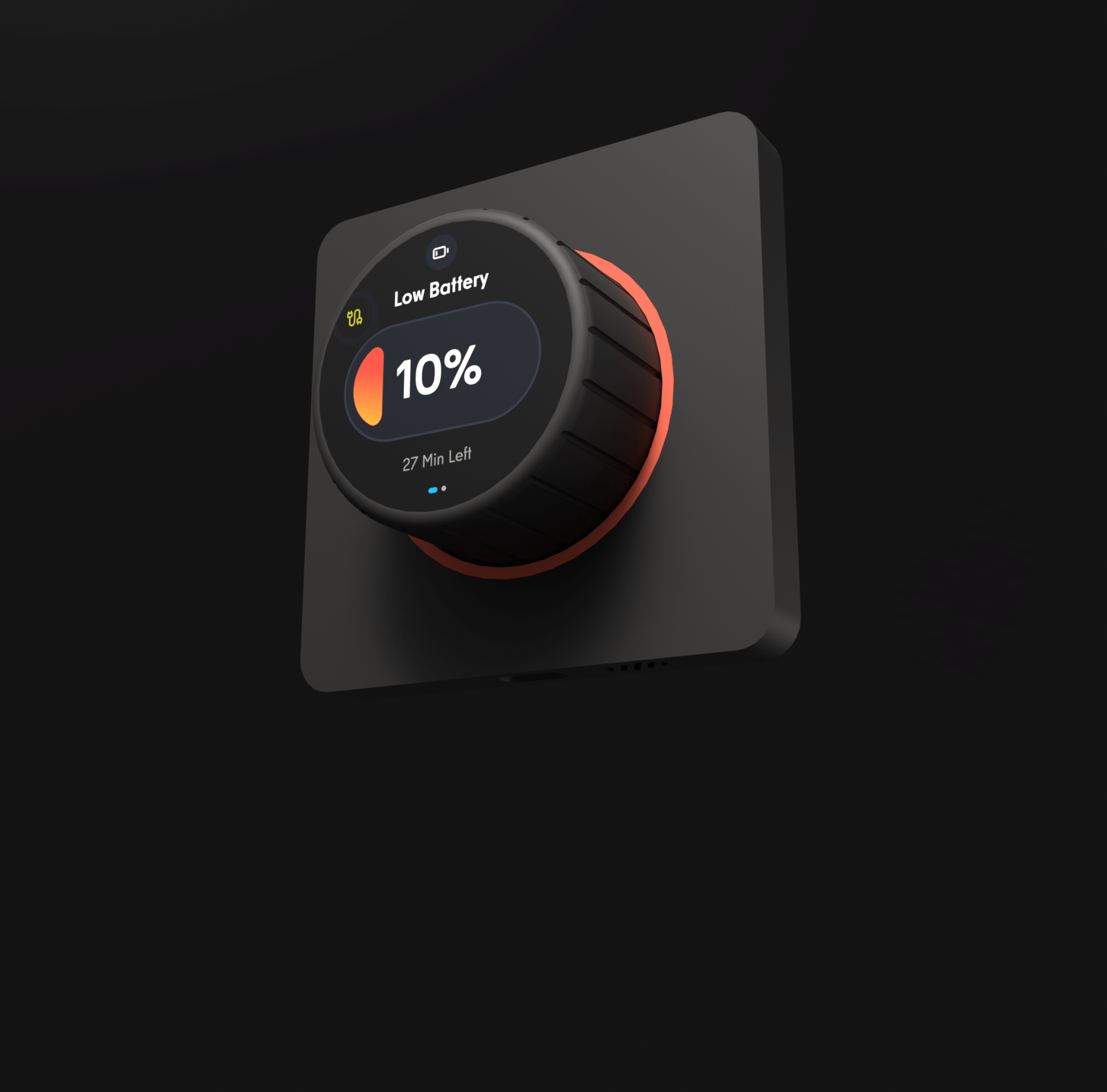

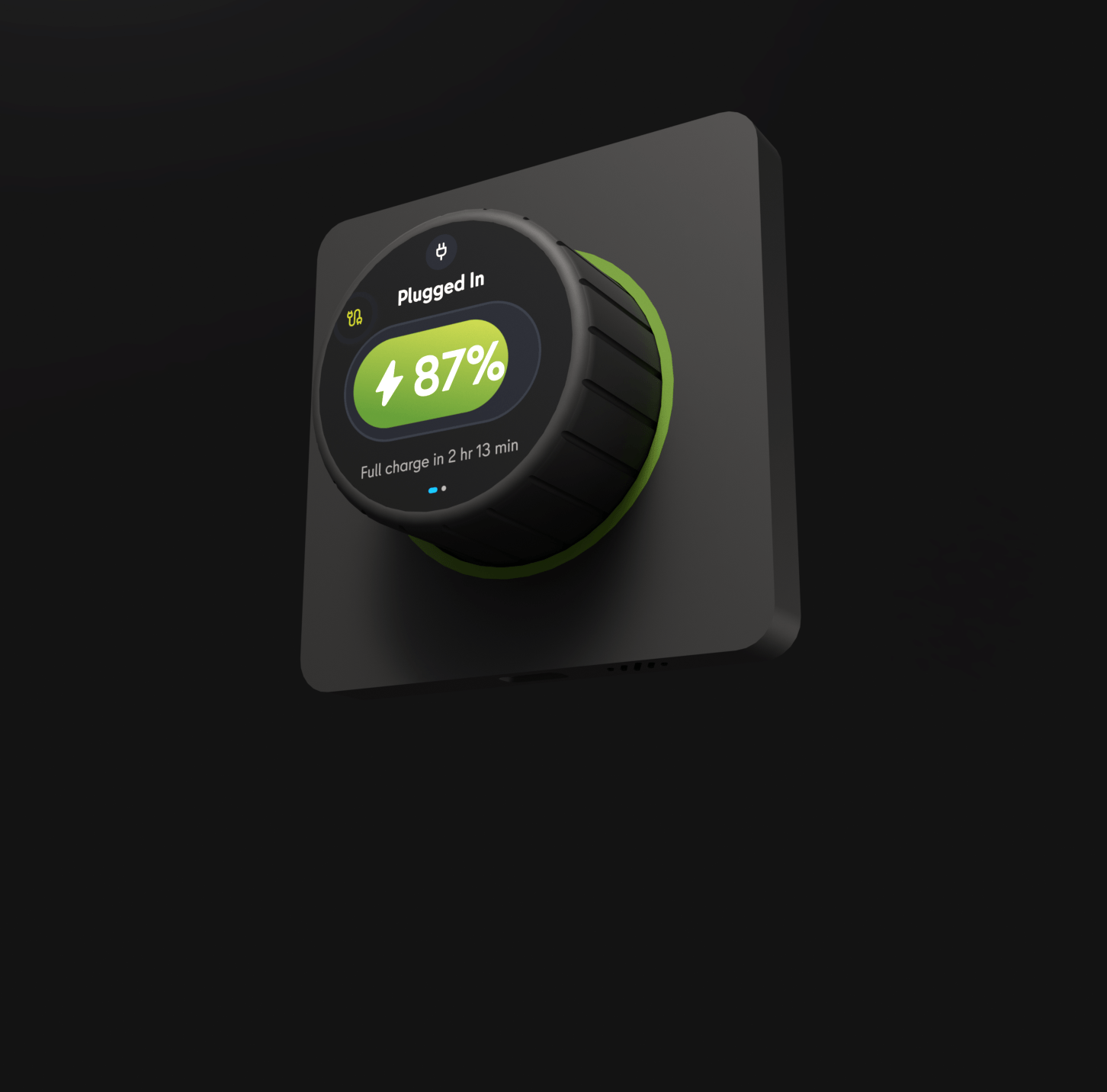

• Haptic multifunction rotary/push knob with integrated 1.2" round LCD display (240×240 px).

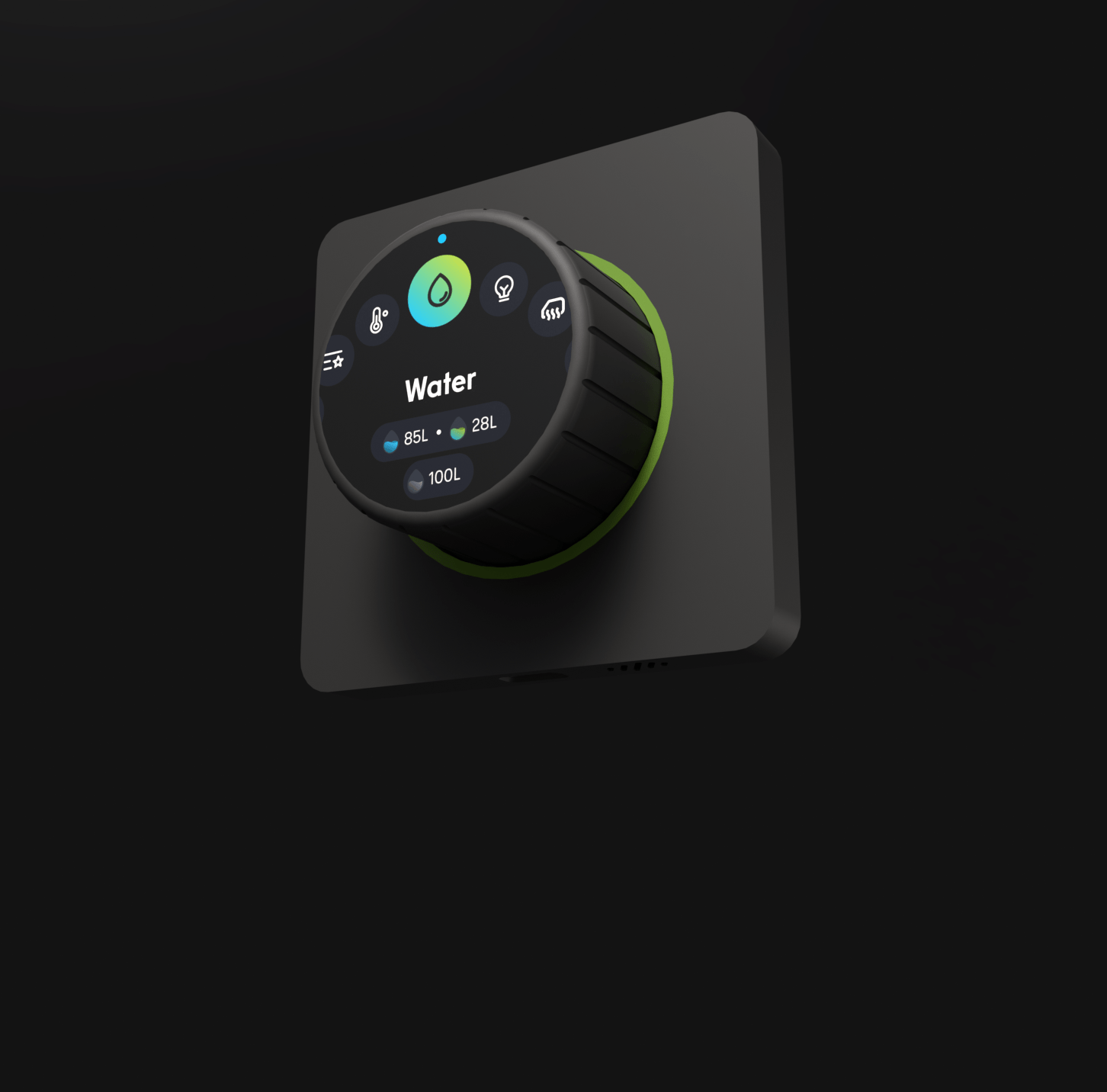

• Intuitive, context-based user interface developed with UX designers for menu navigation and operation logic.

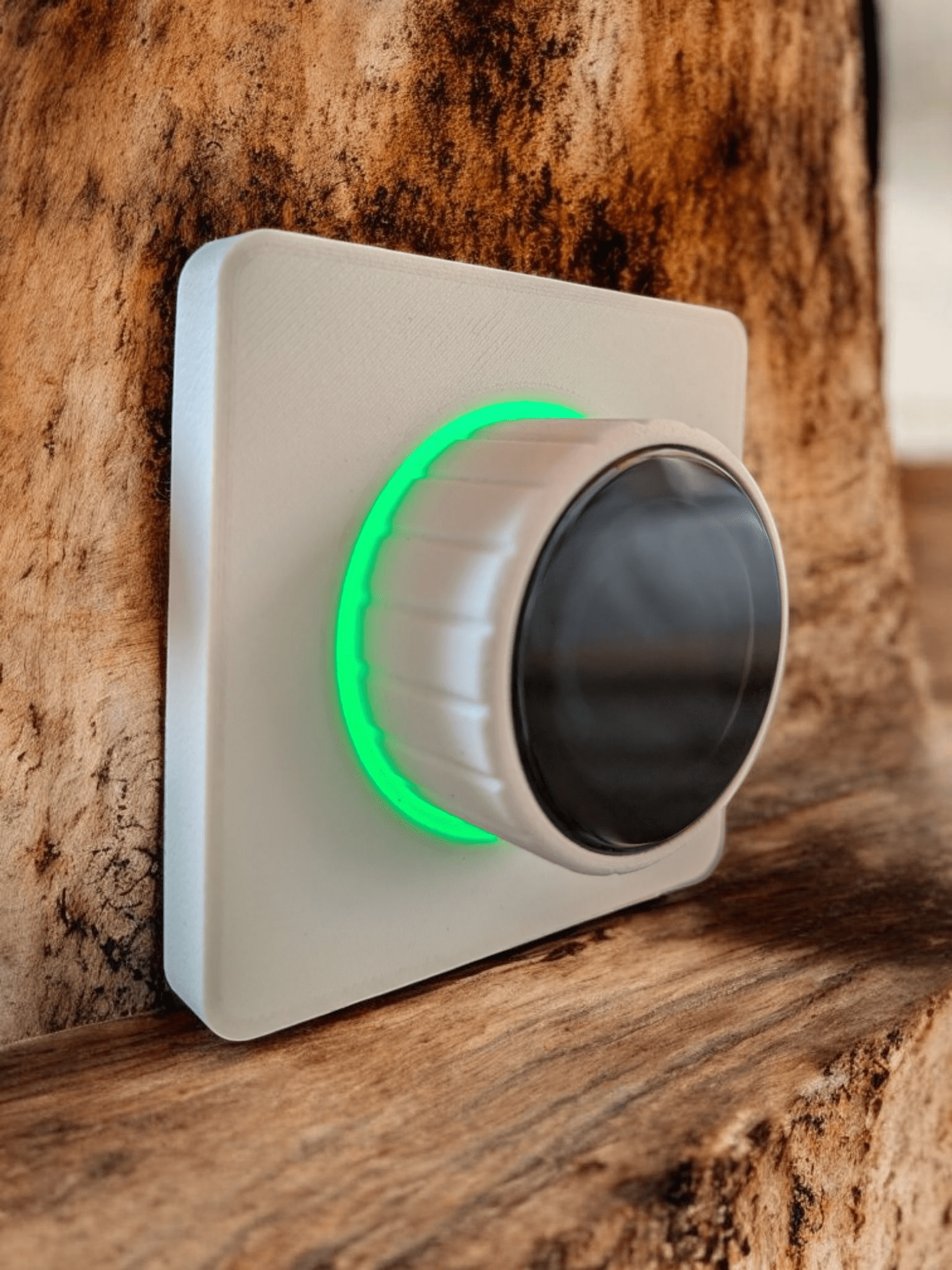

• 66 individually addressable, circular RGB LEDs for dynamic visualization of status, menus, warnings, and functions.



Sensors, feedback & measurement functions

• Precision BLDC motor with closed-loop control for definable haptic clicks, soft limits, and menu boundaries (including end stops, configurable rotational resistance, special “feel” zones).


• 6-axis IMU (accelerometer/gyroscope) for attitude detection and vehicle level/incline evaluation.


• Radar presence sensor for detecting people and animals inside the vehicle.


• Ambient light sensor for automatic dimming of display and LED ring (individually adjustable).


• Temperature, humidity, and air pressure sensor for climate data capturing.


• Optional: Integration of external Ruuvi sensors for extended climate and weather data.



Audio and multisensory feedback

• Integrated speaker for audio feedback (clicks, warnings, status).



System integration & networking

• Creates its own WiFi including web server (dashboard accessible from any device in the camper, including detailed configuration, statistics, and logging).


• Optional integration into existing WiFi infrastructure (router/onboard network) for remote access and system integration.


• Interface compatibility: Integration with Tuya/Shelly lighting modules.



Control logic, scenes & licensing system

• Extensive control and automation logic (boiler based on SoC, fridge night setback, etc.), flexibly configurable via dashboard and the knob itself.


• Predictive smart functions such as excess energy detection (full battery → preheat boiler, cool fridge).


• Future-proof, expandable licensing system for unlocking new features/scenes even offline.



Operation & energy management

• Ultra low power operation: standby consumption < 0.1 W, typical operation ~0.8 W, full load (display/LEDs/active motor) max. 5 W.


• Autonomous energy management: display, LED lighting, and CPU frequency are automatically reduced after inactivity.



Safety features & profiles

• DND/operation profiles (e.g., winter or “deep sleep” profiles): Adjust all functions for different travel situations (measurement & communication intervals for maximum battery protection).


• Guest mode (no settings can be changed, ideal for workshops, family use, rentals).



Expandability

• USB-C port as charging output for external devices such as smartphones/accessories.


• Compatibility with upcoming scenes and system extensions (Switchy Extend, Maxxfan module, etc.).



Build, sustainability & quality

• Smartknob is locally and demand-driven manufactured in Germany.


• Many parts are made in professional 3D printing; unlike traditional injection molding, there is no need to overproduce thousands of housings nor ship them worldwide, which saves resources and minimizes climate impact.


• This avoids overproduction and enables rapid adaptation to demand or new ideas.


• Modular and low-maintenance design, all components optimized for robustness and durability; available in three color variants.



Updates, monitoring & compliance

• Firmware updates via dashboard:
  – Offline per file drag & drop
  – In the future, online (OTA pull)


• Remote access (remote control) via web dashboard – optionally encrypted access with internet connection.


• CE certified, tested according to current EMC/EU safety regulations in an accredited lab.


• Operating temperature range: –20 °C to +80 °C; input voltage: 9–36 V DC.


• Maintenance-free, vibration-proof, silent operation.


• Wireless range to connected modules up to 15 m.
