How Camper Jarvis™ Works
⚡ TL;DR:
Camper Jarvis replaces scattered switches, brand-locked displays, and multiple apps with one physical SmartKnob plus a simple web dashboard. Modules talk wirelessly, install fast, and work fully offline.

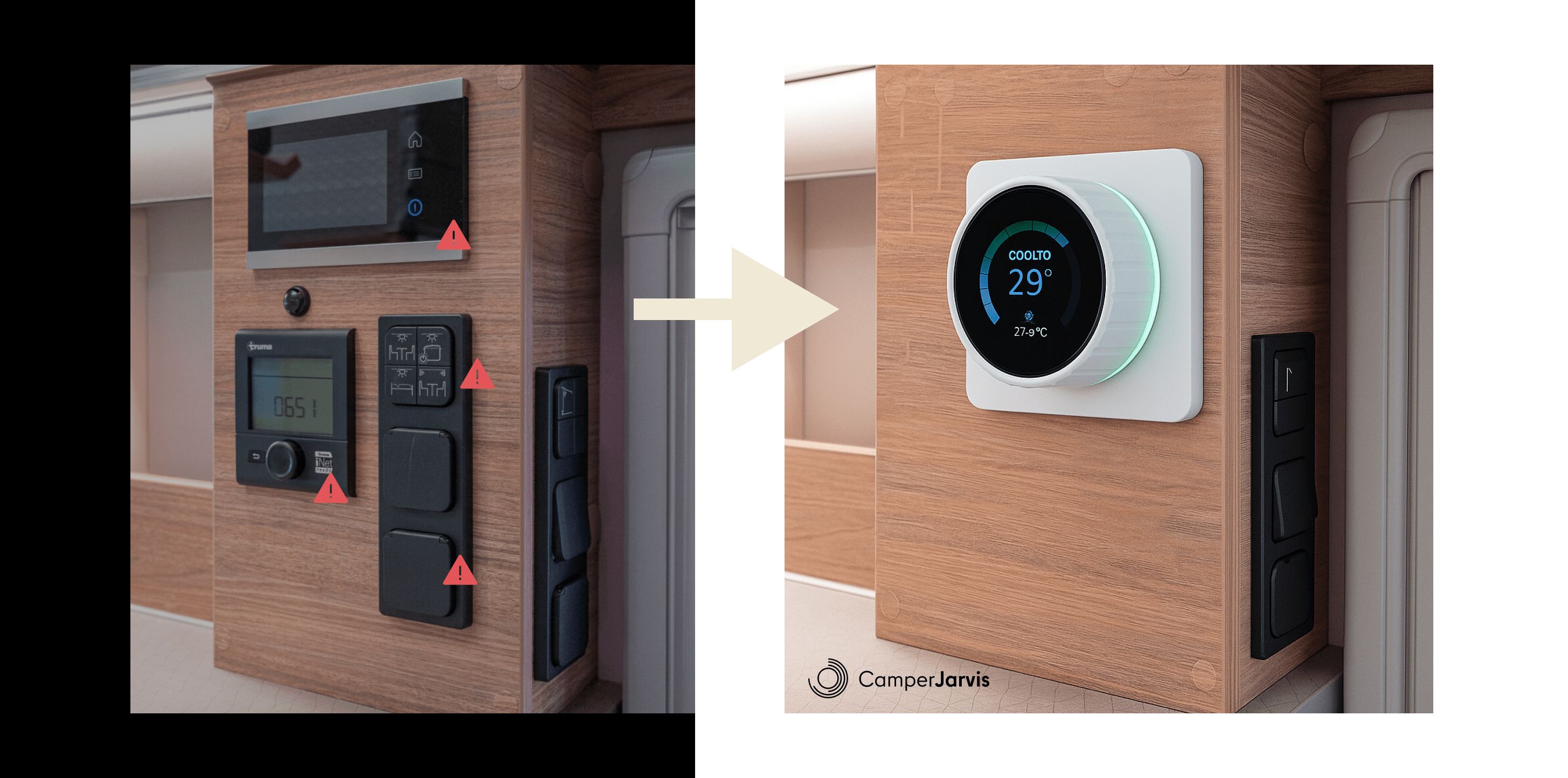

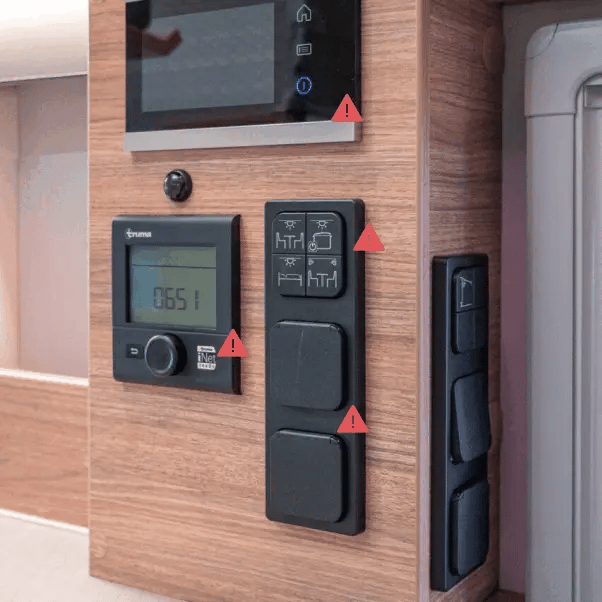

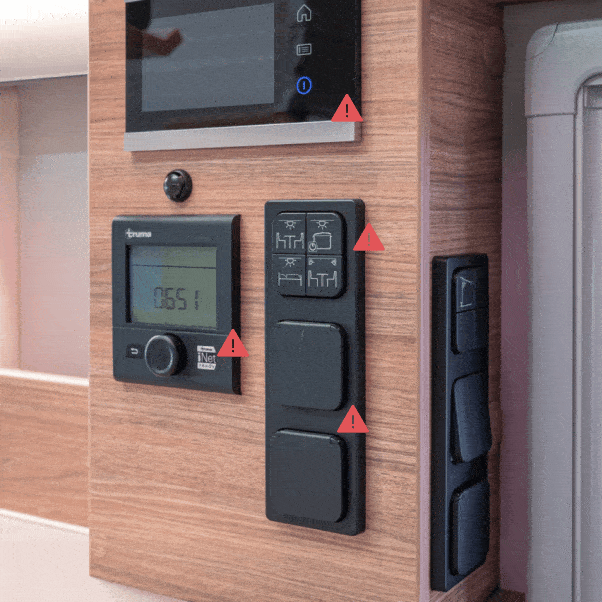

🧩 The Problem We’re Solving (for owners & builders)
-

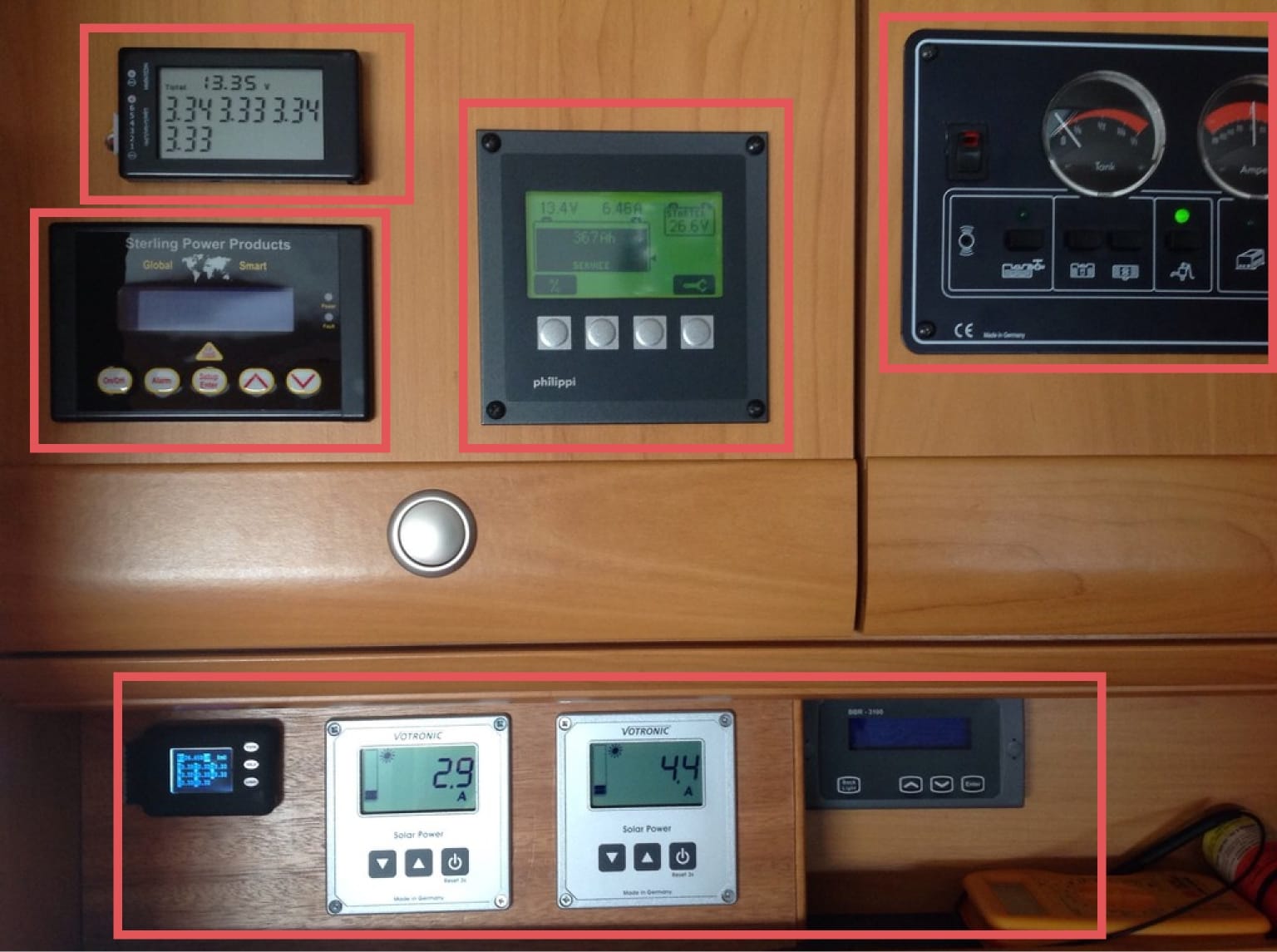

Multiple screens/apps that don’t talk to each other
-
Extra wiring looms and time-consuming installs

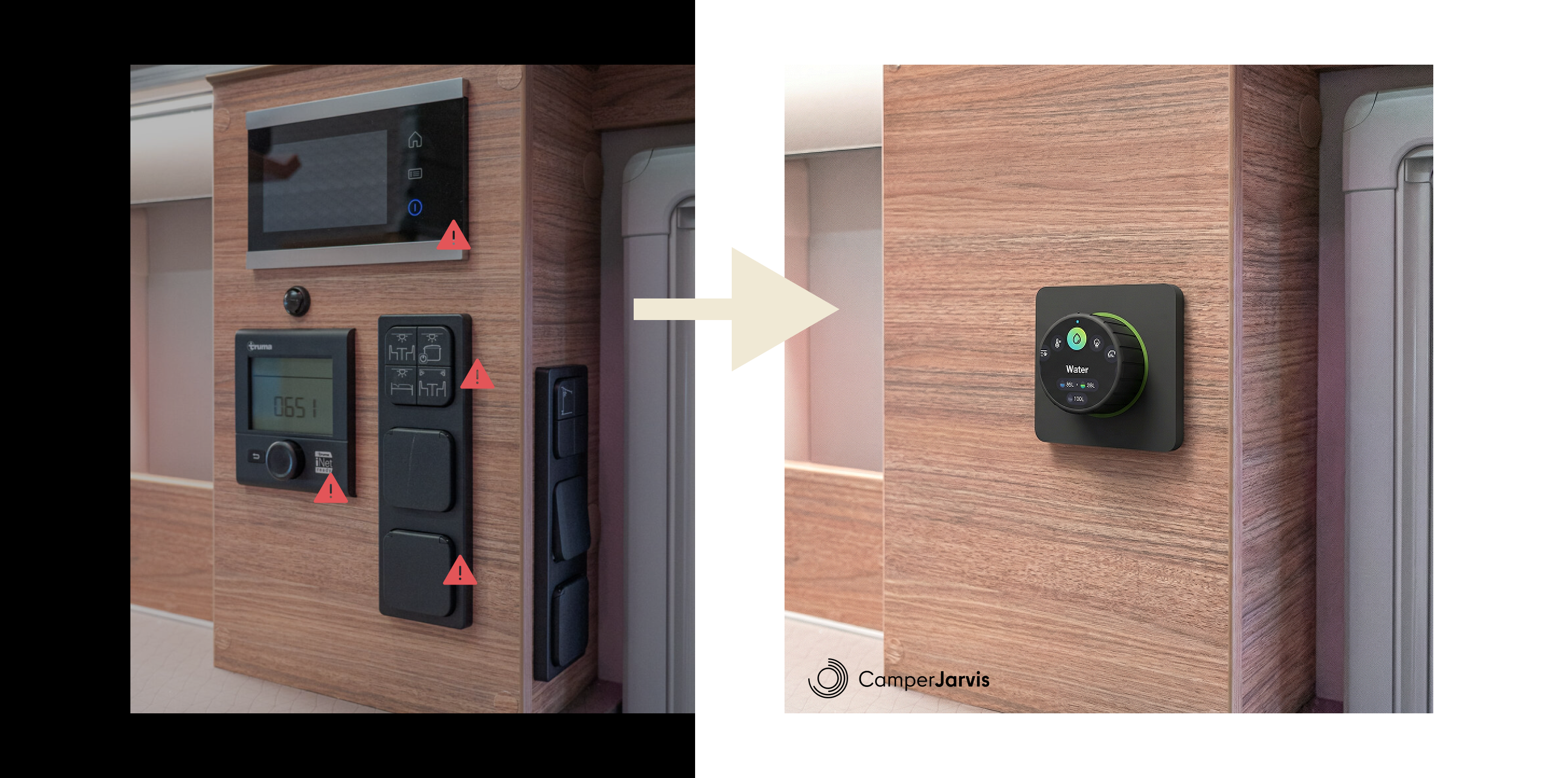

Introducing Camper Jarvis™
-
Camper Jarvis™ unifies the system into one control surface and one dashboard.
You get fewer parts to wire, faster installs, lower idle draw, and a friendlier UI for renters, families, and full-timers 🧘♂️

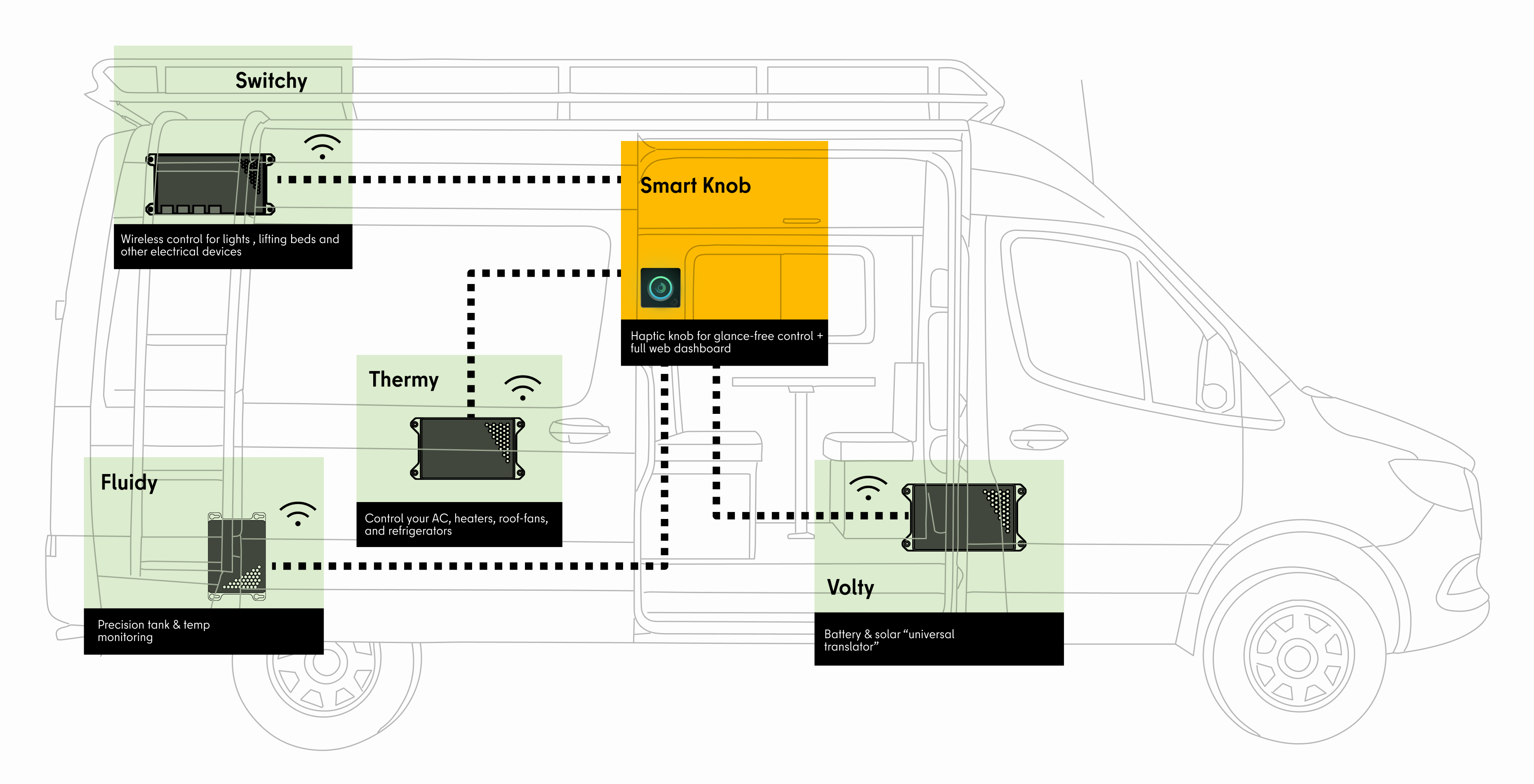

System Overview (the pieces & how they connect)
Works with leading brands
-

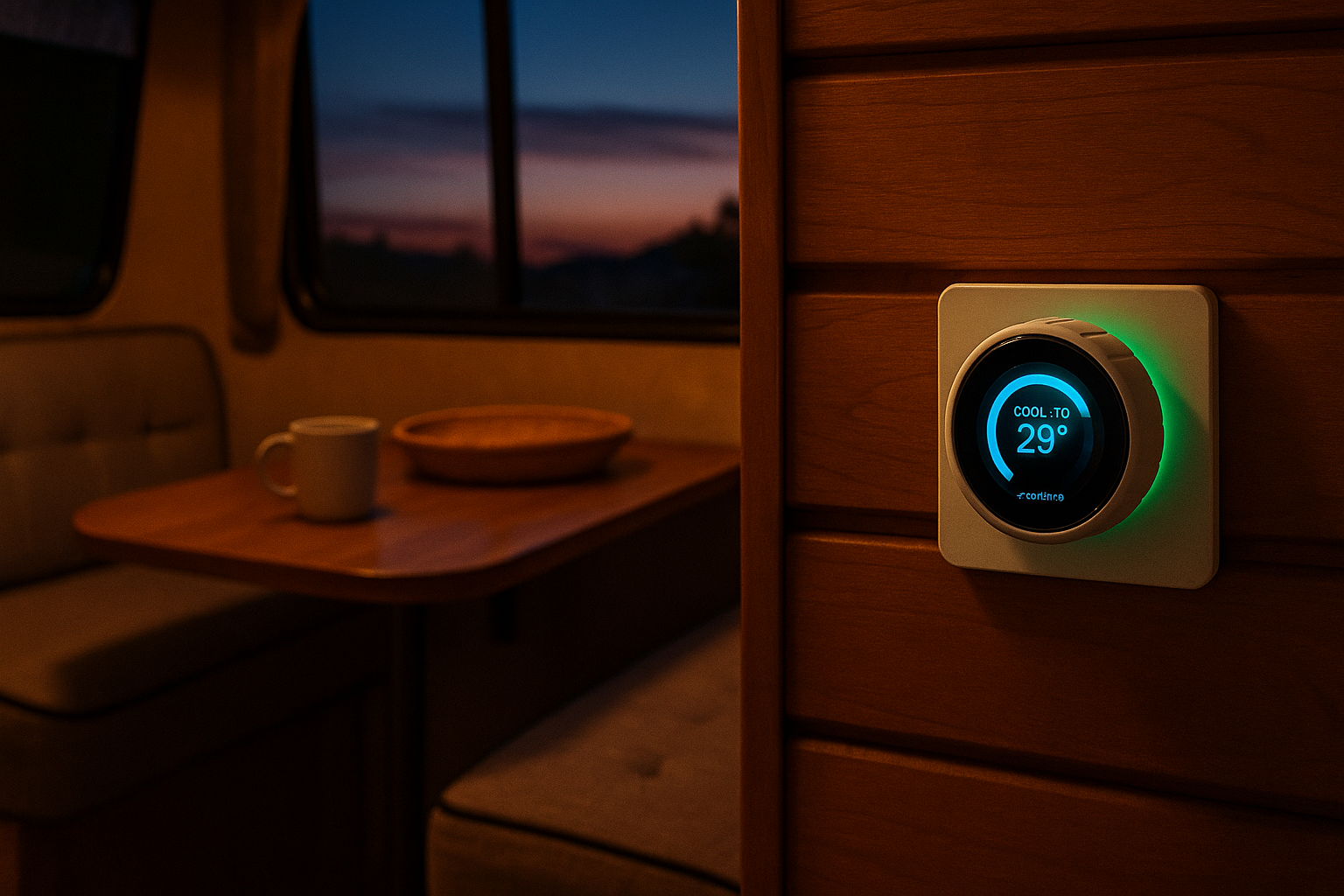

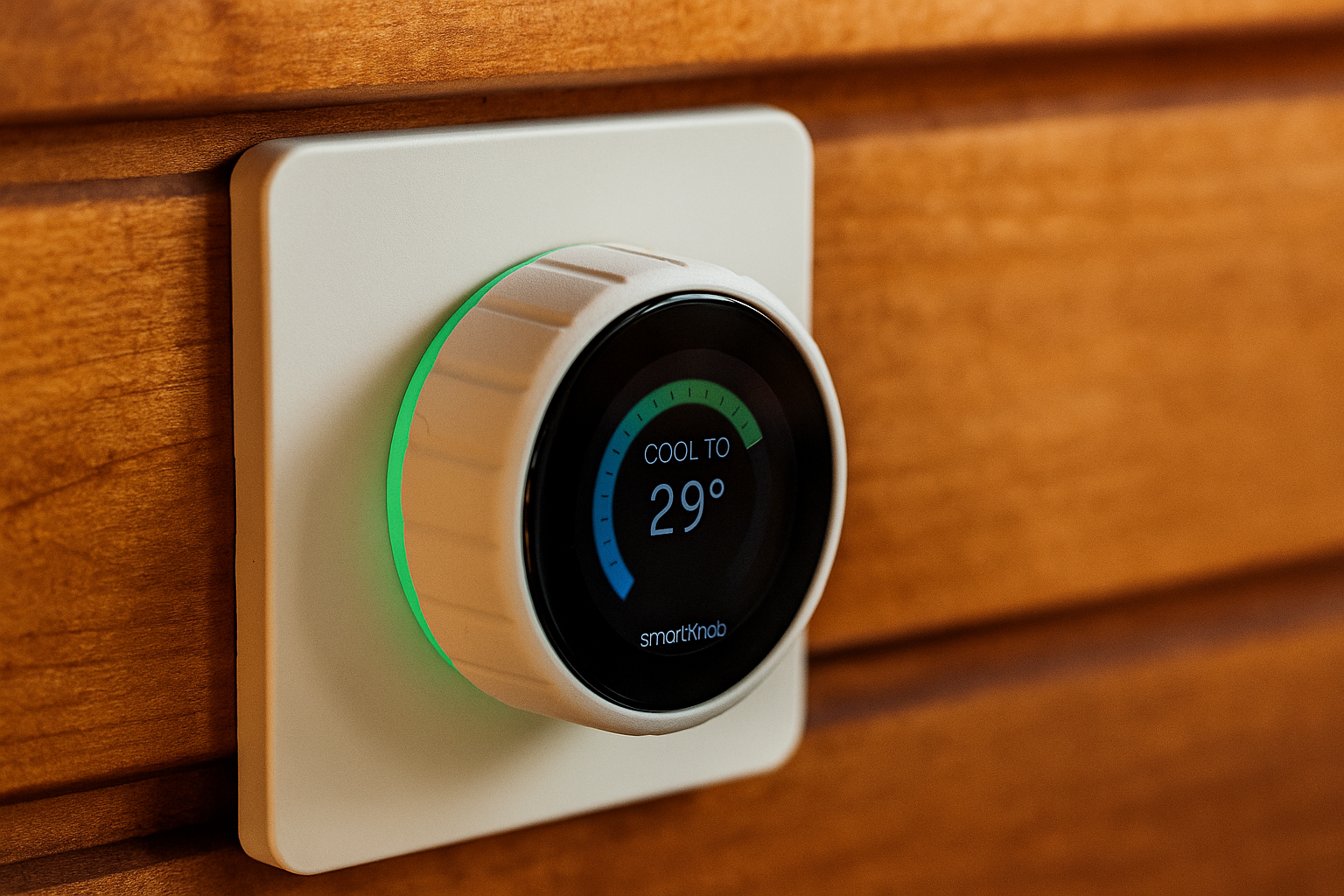

🌀 SMARTKNOB – The Heart of the Van
One turn—total control of your van.
- Haptic push/turn knob with display
- Climate, tanks & battery at a glance
- Presence & light sensors, auto‑dimming
- Built‑in Wi‑Fi + web dashboard
- Scenes & automations (e.g., solar‑heated boiler)
- Made in Germany, ultra‑low power
-

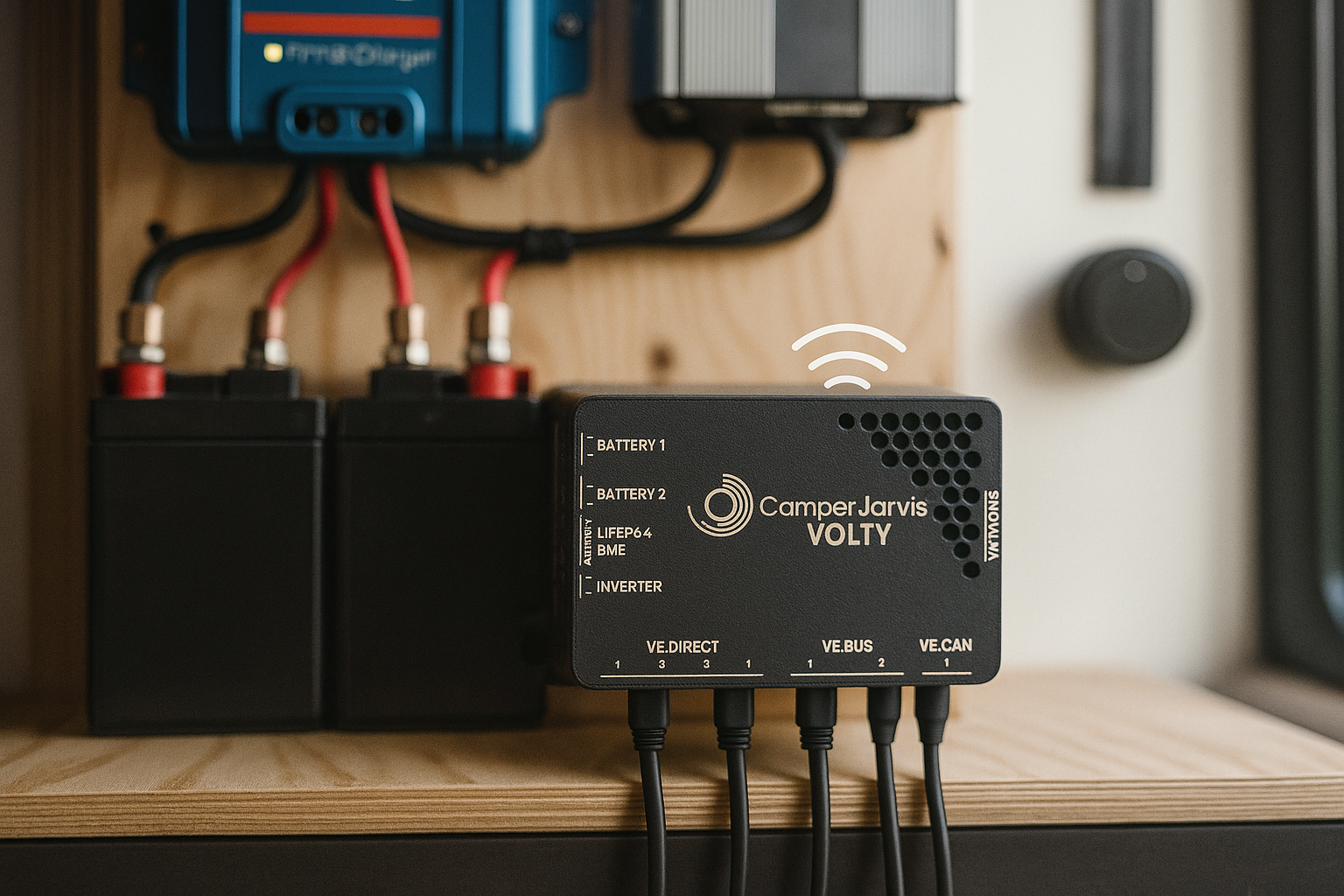

⚡ VOLTY – The Power Hub
Universal energy partner for your camper—connects, monitors, protects.
- Nearly universal: >560 Victron + Votronic
- Reads LiFePO4/BMS (Daly/JBD/JK)
- Plug & play with auto device detection
- Monitors two batteries at once
- Remote control for 230V inverter
- Safe & efficient, updates via dashboard
-

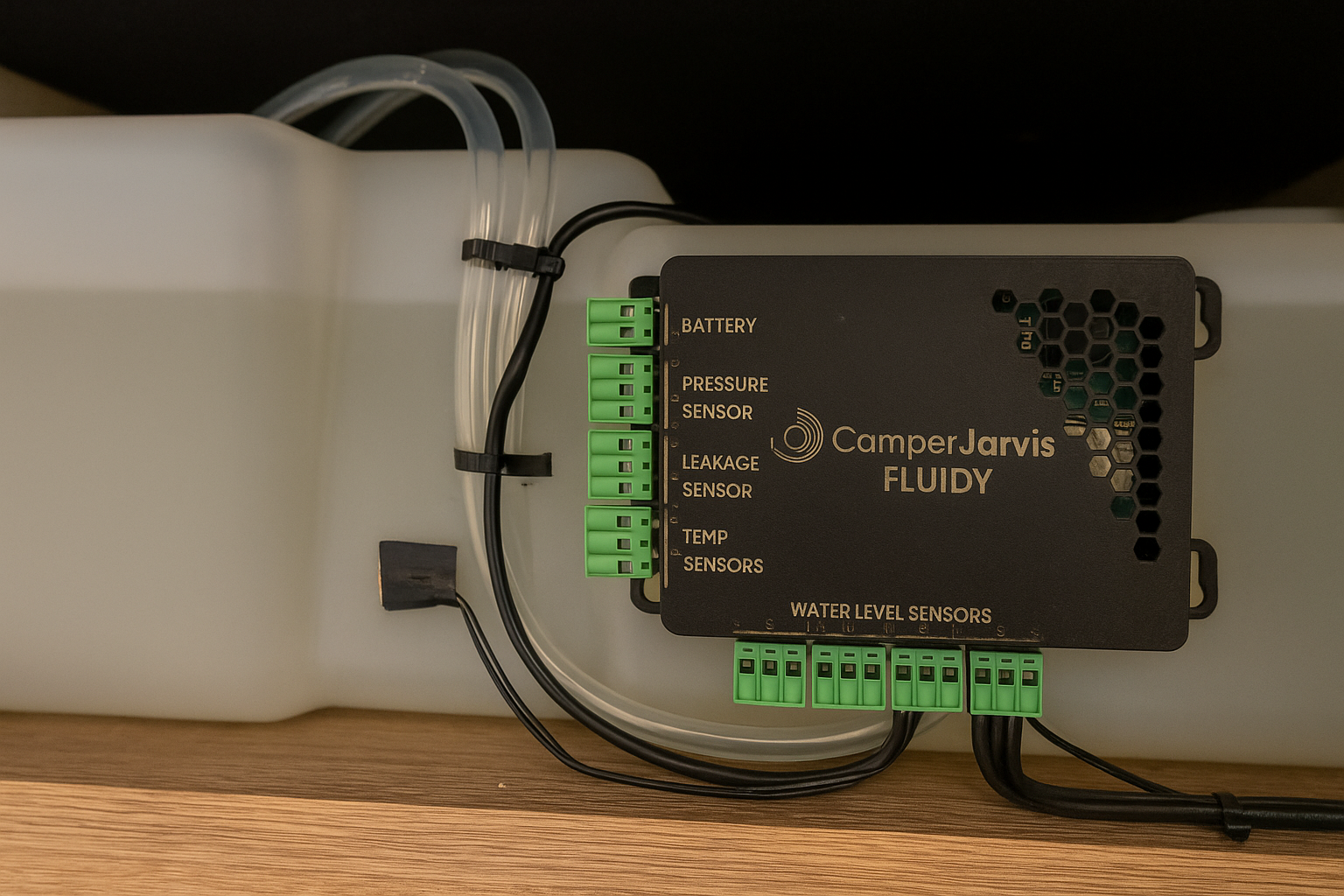

💧 FLUIDY – The Water Hub
Smart tank monitoring & protection for up to four tanks.
- Precise levels—even wheel‑arch tanks
- Easy install, no calibration required
- Leak protection: auto pump shut‑off
- Temperature & pressure sensors ready
- Custom names & alerts in dashboard
- All in the dashboard—no extra app
-
🔀 SWITCHY / SWITCHY Extend – The Switching Hub
Safely control up to eight loads—12/24 V & 230 V.
- 4× DC relays (up to 40 A)
- 4× AC relays (up to 3 500 W)
- Auto shore‑power detection & control
- Lift‑bed/motor control with end‑stop logic
- Tool‑free wiring, clear channel names
- Warnings & logging in the dashboard
-
🔥 THERMY – Climate / Heating / Cooling
Central control for heater, AC & fridge.
- Autoterm/Webasto/Eberspächer/Truma
- Two heaters—independent or parallel
- Dometic Freshjet & modern fridges
- Setpoint, modes & timers on Smartknob
- Smart energy savings (e.g., night mode)
- Diagnostics, alerts & EU‑tested safety
🔗 What Connects to What (quick mapping)
| Thing in your van | Connects to | What you see/control on SmartKnob |
|---|---|---|
| 🔋 Battery,☀️ solar charger, 🔄 inverter/charger, 📏 shunt, 🧠 BMS | Volty | SOC,amps, watts, warnings, charge/invert states |
| 🚰 Fresh/grey/black tanks, 🌡️ temp probes, 📈 line pressure | Fluidy | Accurate tank%, line pressure, temps, freeze alerts |
| 💡 Lights, 🌬️ fans, 🚿 pumps, 🛏️ actuators, 🔌 shore transfer | Switchy / Switchy Extend | On/Off, PWM, interlocks, auto load-shedding |
| 🔥 Diesel/gas heater (Webasto/Truma/Planar) | Thermy | Target temp, timers, altitude mode, faults |
🔐 Data Flow & Reliability (for the technically curious)
-
🏠 All local, no cloud
All control logic and dashboards live on the SmartKnob and the individual modules—no external cloud or mobile data needed.
-
📶 Wireless
Modules publish telemetry and receive commands over ESP-NOW; the SmartKnob also offers a local Wi-Fi b/g/n access-point so you can open the web dashboard on any phone or laptop.
-
🔋 Power budget
SmartKnob drops into deep-sleep when idle (< 0.2 W). Each module wakes only on its sampling interval or command, keeping the entire system battery-friendly.
-
🛡️ Built-in autonomy
Critical protections—load-shedding in Switchy, freeze & dry-run logic in Fluidy—run inside the modules themselves. If the wireless link or SmartKnob goes offline, relays stay latched and safety logic continues, but live telemetry will pause until the connection is restored.
-
🔄 OTA
Firmware files are uploaded through the SmartKnob dashboard; it then distributes the update wirelessly to each module. Updates are verified before activation, with the previous image retained for manual rollback if ever needed.
